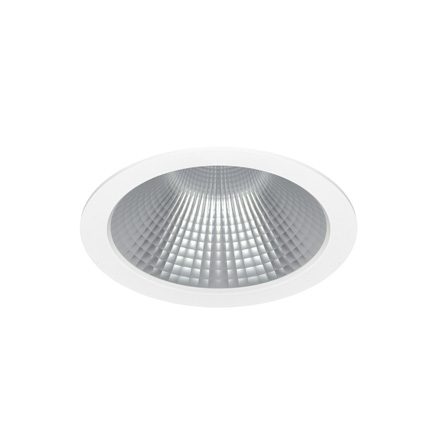

10 Series LED downlight

10 Series LED downlights feature a discreet low profile bezel, designed to offer architects and specifiers an unobtrusive large diameter downlight that can be integrated into any application without compromising the visual effect of the space.

They also feature excellent light source and luminaire efficacies, a low universal glare rating (UGR) and long life, as well as a wealth of options and accessories.

192 / 195 / 198 mm bezel / 176 mm cut-out

10 Series LED downlight Philips

Specifications

  • Professional, high performance LED downlight
  • Philips SLM LED module and driver system
  • Low glare multi-faceted 55 deg aluminium reflector
  • Nominal rated life >50,000h L90
  • MacAdam colour tolerance <3 SDCM
  • Available with a wide range of options and accessories
  • Minimalist die-cast bezel in brilliant white RAL 9016
  • Up to 135 luminaire lumens per total circuit Watt
  • CIBSE TM66 assessment: “Excellent circularity”
  • 5 year warranty
Lm / w high efficacies
eco designed
renewable
recyclable
CIBSE TM66
High RA
DIM options
DALI Optins
emergency options
ip65
ip54
wireless
RAL colour
5 year warranty
uk

Downloads

For any specific questions, please contact our team on sales@bf-energygroup.co.uk

Product Datasheet

Photometric Data
